Automatic Double-Head Pipe Threading System | 1/2″-4″ Steel Pipe Threading Equipment for Fire Sprinkler & MEP Prefabrication

Description:
The Automatic Double-Head Pipe Threading System is developed for high-efficiency steel pipe threading in fire protection, MEP and building pipeline prefabrication applications.
Traditional pipe threading operations usually require operators to manually rotate or transfer long pipes between processes. This increases labor intensity and reduces production efficiency, especially for large-volume fire sprinkler pipe fabrication.
This system solves these challenges by combining two automatic threading heads with a servo-controlled translation rack. The pipe moves between the two threading stations while the threading heads remain fixed, allowing efficient double-end threading without manual pipe turning.

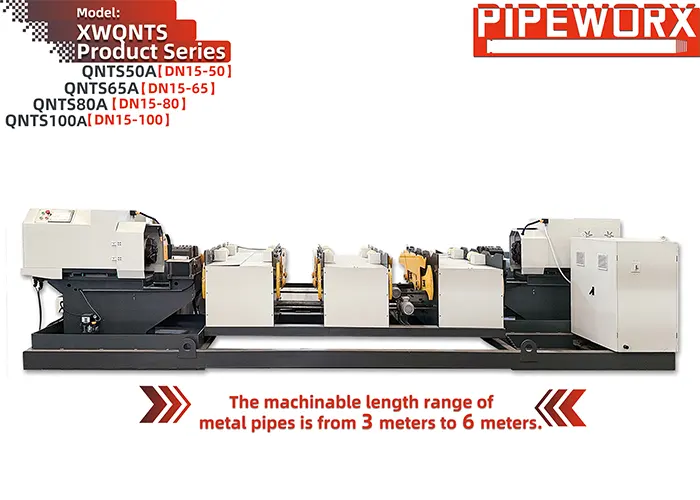

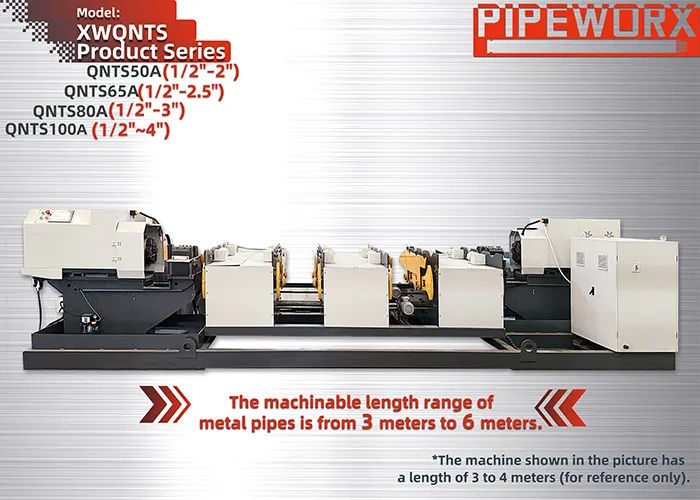

The system is based on the XWQNTS intelligent threading platform and includes multiple models:

• QNTS50A: Suitable for 1/2"-2" (DN15-DN50) pipe threading
• QNTS65A: Suitable for 1/2"-2.5" (DN15-DN65) pipe threading
• QNTS80A: Suitable for 1/2"-3" (DN15-DN80) pipe threading
• QNTS100A: Suitable for 1/2"-4" (DN15-DN100) pipe threading

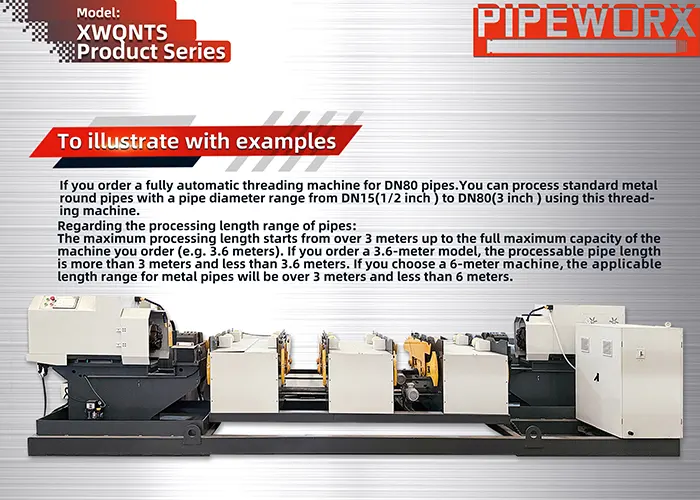

The translation rack length can be customized according to customer requirements. The standard configuration supports pipe lengths from 1.2m to 6m, while longer processing lengths can be customized.

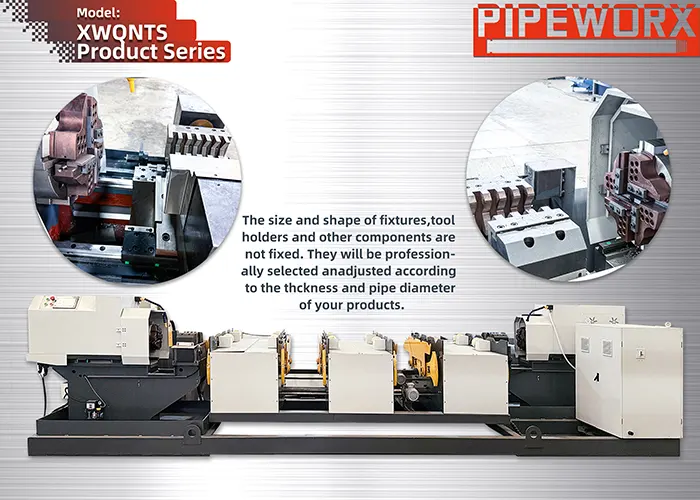

Equipped with intelligent PLC control, hydraulic pipe clamping and servo positioning technology, the system provides stable pipe movement, accurate positioning and consistent thread quality during continuous production.

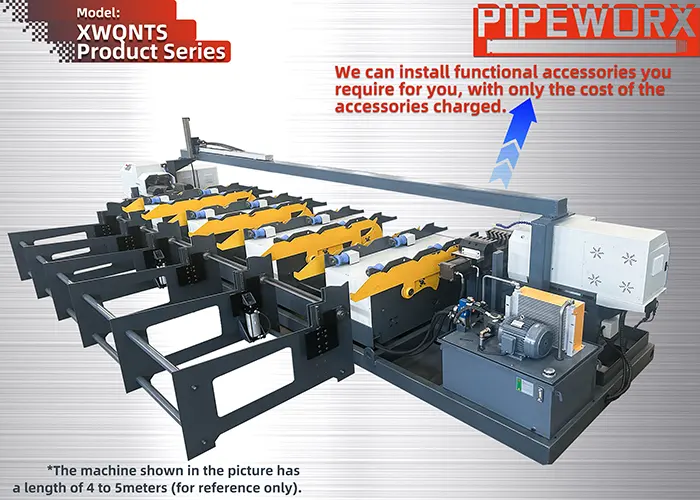

Optional loading racks and unloading racks are available to further improve workshop automation.
The Automatic Double-Head Pipe Threading System is widely used by fire sprinkler pipe manufacturers, MEP prefabrication workshops, fire protection contractors and pipe fabrication companies requiring efficient automated threading solutions.

Applications:
Fire Sprinkler Pipe Prefabrication
Used for double-end threading of galvanized steel pipes and carbon steel pipes for fire sprinkler systems, improving production efficiency and thread consistency.

MEP Pipeline Fabrication
Suitable for mechanical, electrical and plumbing prefabrication projects requiring standardized steel pipe processing.

Fire Protection Workshop Production
Helps contractors produce large quantities of threaded sprinkler pipes with reduced manual handling.

Pipe Fabrication Workshops
Provides an efficient automatic threading solution for workshops requiring stable production and improved processing capacity.

Automated Pipe Processing Systems
Can be integrated with loading racks and unloading racks to create a more efficient pipe fabrication workflow.

Pipe Prefabrication Factory
Designed for pipe prefabrication factories requiring continuous double-end threading production with reduced manual handling.

Specifications:

Competitive Advantage:
Double-End Threading Without Pipe Turning

The double-head configuration eliminates manual pipe turning during long pipe threading, improving production efficiency and reducing labor intensity.

Designed for Fire Sprinkler Fabrication

Optimized for 1/2"-4" sprinkler pipes, supporting efficient production for fire protection and MEP workshops.

Servo-Controlled Pipe Movement

The translation rack accurately positions the pipe between two threading heads, ensuring stable operation and repeatable processing quality.

Flexible Pipe Length Configuration

The translation rack length can be customized according to workshop layout and pipe processing requirements.

Intelligent Threading Control

PLC control, hydraulic clamping and automatic threading improve consistency compared with traditional manual operation.

Expandable Automation Solution

Optional loading and unloading systems help customers upgrade toward higher workshop automation.
