Heavy-Duty CNC Pipe Threader for Extra Long Threads | DN50-DN300（2inch-12inch）, BSPT & NPT Thread Available
Specially engineered for large-diameter, thick-walled steel pipes and extra-long thread machining, this machine delivers stable and high-precision threading performance for industrial pipe applications.
With flexible customization options for pipe processing range, thread standards, and thread length, it is ideal for oil & gas pipelines, industrial piping, and heavy-duty pipe fabrication projects.
- Phone：+86-18961676122
- E-mail：info@xw-tube.com
Key Features
Large-diameter and thick-wall pipe machining with support for extra-long thread processing
Customizable thread standards and processing lengths, including BSPT, NPT, and other specifications
Powerful clamping force and anti-vibration structural design for stable and accurate machining
Description:
Technical Advantages
CNC System Control
Themachine is equipped with a CNC system to ensure precise control over the threading This allows for easy adjustment of parameters such as threading length, speed, and torque, making it suitable for different pipe sizes and materials.
Servo Motor Precision
Theuse of servo motors provides high-speed operation, smooth acceleration/deceleration, and excellent dynamic This ensures minimal wear and tear while maintaining consistent thread quality.
High Efficiency
Theservo-driven system enables fast setup and operation, significantly improving production
Energy Efficiency
Withlow power consumption and optimized energy usage, the machine reduces operating costs and contributes to environmental
Versatility
Theintelligent threading machine supports a wide range of pipe diameters (60mm to 323mm) and materials, including stainless steel pipes, galvanized pipes, and fire protection
Applications:
Oil & Gas Pipes
Thick-Wall Steel Pipes
Industrial Pipeline Fabrication
Custom Pipe Threading Projects
Stainless Steel Pipe Processing
Galvanized Pipe Processing
Fire Protection Pipe Fabrication
Water Supply & Drainage Systems
Pipeline Construction & Maintenance
Specifications:
|
Model Number: |
XWNCTS100 |
XWNCTS200 |
XWNCTS300 |
|
Processing Range: |
2 inch - 4 inch(60mm-114mm) |
2 inch -8 inch(60mm-219mm) |
2 inch - 12 inch(60mm-323mm) |
PRODUCT PARAMETERS
| Brand Name: |
XinWang |
Place of Origin: |
China |
|
Thread Varieties: |
P T NPT |
CNC System: |
Huazhong HNC8 |
|
Product Name: |
CNC Threading Machine |
Application: |
Pipe Threading |
|
Rated Power: |
10KW |
Spindle Servo Motor Power: |
5.5KW |
|
Effective Stroke of Slide in Z Direction: |
100mm |
Maximum Stroke of Cutter Head in X Direction: |
100 mm |
|
Slide Feed Speed: |
CNC Speed Regulation |
Cutter Head Lateral Feed Speed: |
CNC Speed Regulation |
|
Repeat Positioning Accuracy in X Direction: |
0.01 |
Repeat Positioning Accuracy in Z Direction: |
0.015 |
|
Spindle Speed: |
400r/min (servo speed regulation) |
Equipment Weight: |
1800KG |
|

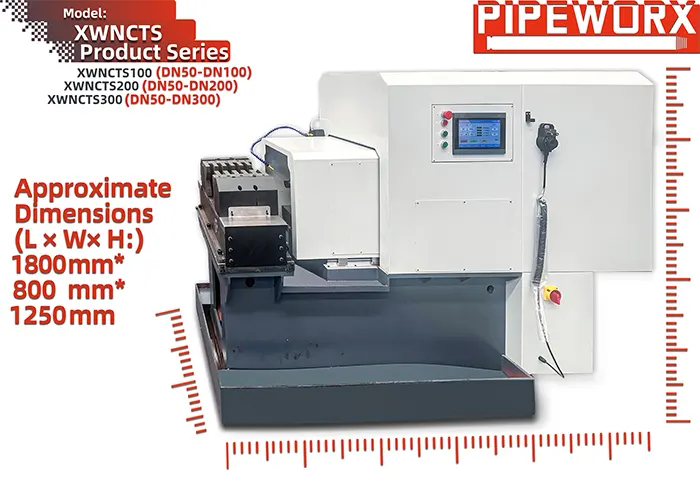

Equipment Dimensions(L*W*H): |
1800mm*800mm*1250mm |
Delivery Time: |
30 working days after received your payment |
Competitive Advantage:
· High Precision High-precision threading processing guarantees uniform, qualified pipe threads.
· Stable Reliability Heavy-duty structure matched with advanced CNC control system keeps stable and consistent machining performance.
· Cost Saving Low power consumption and fewer maintenance requirements effectively cut customers’ long-term operating costs.
· Widely Recognized Globally Our machines are widely applied in projects across Southeast Asia, Europe, the Middle East and other global markets.
Product Introduction
| Place of Origin: |
China |
|
Brand Name: |
Pipeworx(china) |
|
Certification: |
CE/ISO9001 |
|
Model Number: |
XWNCTS100/200/300 |
Product Business Terms
| Minimum Order Quantity: |
1set |
|
Price: |
Negotiable |
|
Packaging Details: |
Seaworthy Wooden Case |
|
Delivery Time: |
30 working days after received your payment |
|
Payment Terms: |
T/T |
|
Supply Ability: |
100 sets per year |

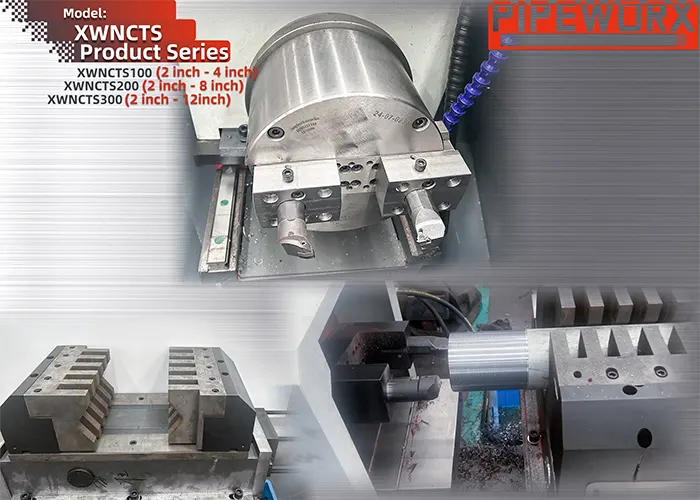

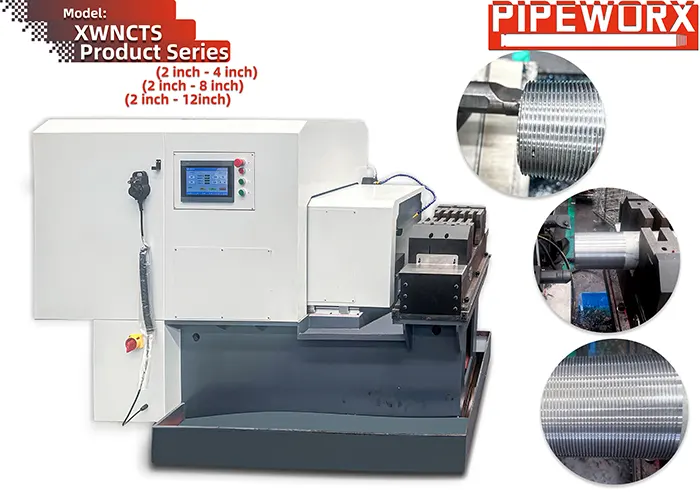

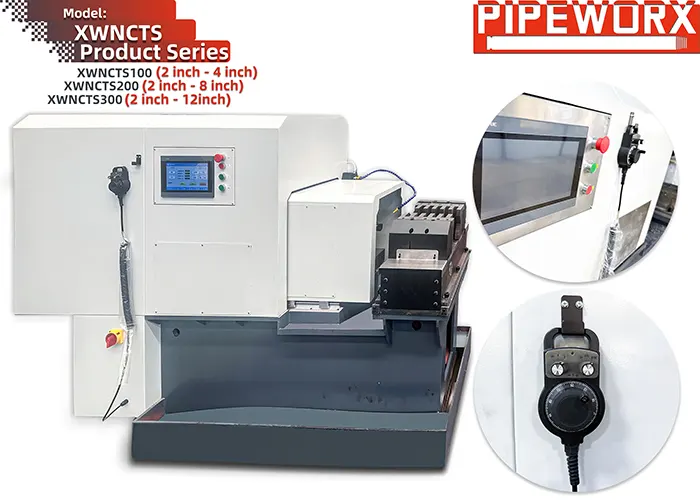

Product Picture
