Automatic Pipe Fitting Tightening Machine | Threaded Pipe Fitting Assembly Equipment | DN15-DN65 Tee, Coupling & Elbow

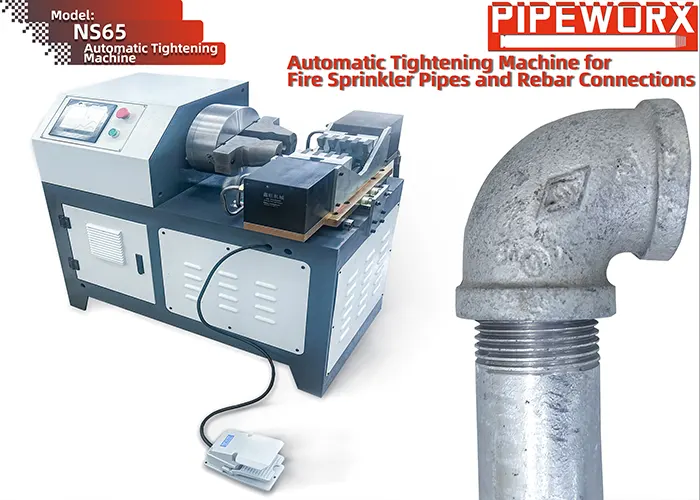

The 4KW Automatic Pipe Fitting Tightening Machine is designed for efficient and consistent assembly of threaded pipe fittings in pipe prefabrication production. It is widely used in fire protection piping, HVAC systems, building MEP projects and other industrial pipeline applications.
Equipped with a 4KW drive system and maximum 400N.m tightening torque, the machine provides stable tightening force for DN15-DN65 threaded fittings, including couplings, elbows and tees. Compared with manual tightening methods, it improves assembly consistency, reduces labor intensity and increases production efficiency.

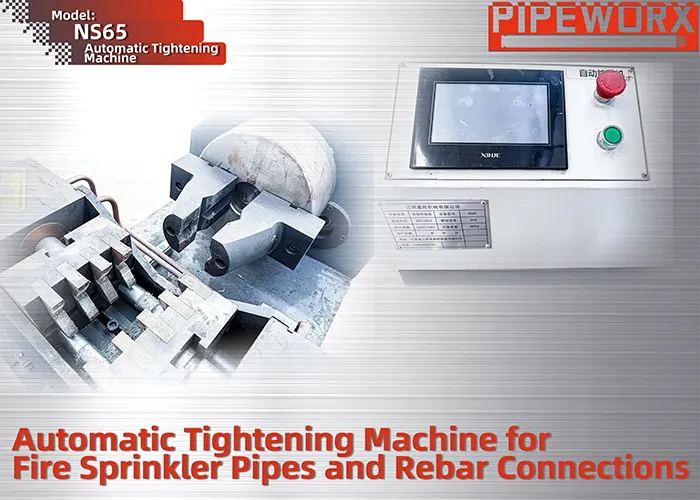

The machine adopts automatic clamping, positioning and constant torque control technology to ensure repeatable tightening results during batch production. It helps reduce problems caused by inconsistent manual operation, such as uneven tightening force and unstable assembly quality.
With a compact structure of 1200mm × 800mm × 900mm and standard 380V / 50Hz industrial power supply, the equipment is easy to install and suitable for integration into pipe prefabrication workshops and production lines.

Applications:
Main Applications
Fire Protection Pipe Fabrication
For automatic tightening of threaded sprinkler pipe fittings, including couplings, elbows and tees.
HVAC & MEP Pipeline Assembly
Suitable for threaded pipe connection assembly in ventilation, air conditioning and building mechanical systems.
Pipeline Prefabrication Workshops
Improves production efficiency for factories producing prefabricated pipe assemblies and pipe fitting components.
Pipe Fitting Manufacturing
Ideal for batch assembly of galvanized steel pipe fittings and carbon steel threaded connections.
Optional Extended Application
Rebar Coupler Assembly
Besides standard pipe fitting processing, this machine can be customized to tighten threaded rebar couplers, expanding its application in construction steel bar connection projects.

Specifications:

Competitive Advantage:
High-Torque Stable Performance

Equipped with a 4KW industrial drive system, the machine provides up to 400N.m tightening torque for stable assembly of threaded pipe fittings. It delivers reliable tightening performance for galvanized steel and carbon steel pipe connection applications.

Multi-Size Pipe Fitting Compatibility

Designed for DN15-DN65 threaded pipe fittings, the machine supports common connection types including couplings, elbows and tees. One machine handles multiple fitting applications, helping reduce equipment investment and improve production flexibility.

Constant Torque Tightening Control
The machine adopts constant torque control technology to provide consistent tightening force during every assembly cycle. It reduces variations caused by manual operation and improves connection consistency.

Efficient Automatic Assembly
With automatic clamping, positioning and tightening functions, the machine simplifies pipe fitting assembly processes, reduces labor requirements and improves production efficiency for batch manufacturing.

Compact Industrial Design
Powered by standard 380V 50Hz industrial electricity, the machine ensures stable operation for continuous production. The compact structure (1200×800×900mm) saves workshop space and allows easy integration into pipe prefabrication production lines.

Standardized Production Quality
Automatic control of tightening parameters ensures repeatable assembly results for each batch of pipe fittings. It reduces dependence on operator experience and supports standardized pipe prefabrication production.
