Automatic Steel Pipe Cutting Machine with Nesting Optimization | 1/2″–2.5″ Fire Sprinkler Pipe Prefabrication System

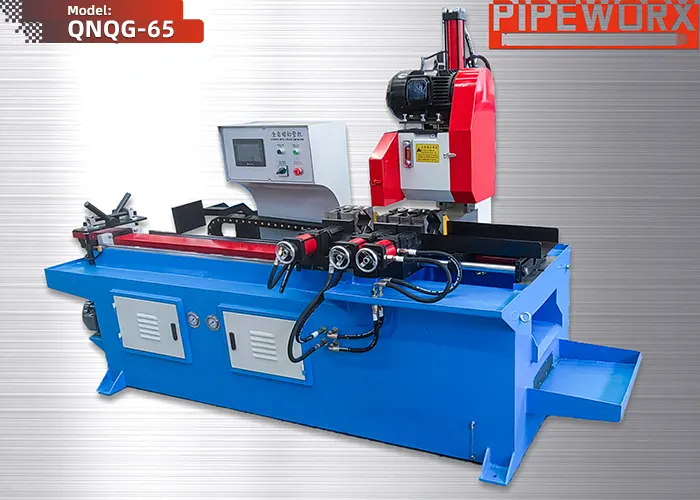

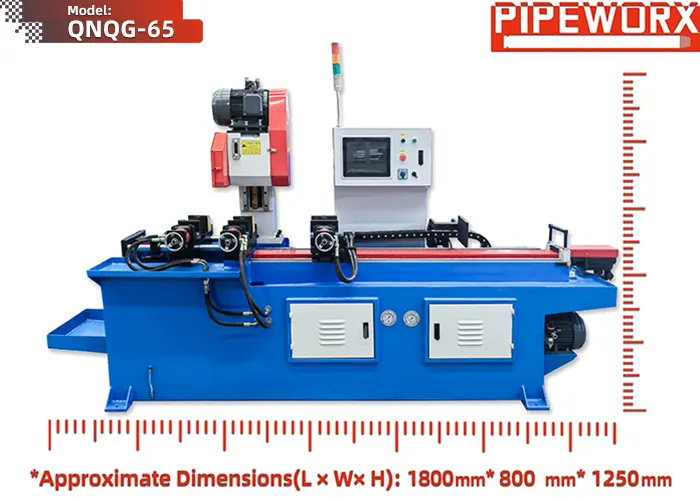

The CNQG-65 Automatic Pipe Cutting & Nesting Machine is a fully automatic steel pipe cutting solution developed for fire sprinkler pipe prefabrication, MEP pipe fabrication and industrial steel pipe processing applications.
The machine integrates automatic pipe feeding, servo-controlled length positioning, intelligent cutting calculation, hydraulic self-centering clamping and automatic saw cutting into one complete system, providing high cutting accuracy, stable operation and improved production efficiency.
Unlike conventional pipe cutting equipment, the CNQG-65 automatically calculates optimized cutting sequences according to the cutting list, helping reduce material waste and improve raw material utilization. The servo feeding system ensures precise positioning of each cutting length, while the Mitsubishi PLC and industrial computer provide reliable and intelligent control throughout the cutting process.
Designed for steel pipes from 1/2" to 2.5" with a standard pipe length of 6 m, the machine is suitable for high-volume pipe prefabrication. The cutting cycle is approximately 3–5 seconds per cut, depending on pipe size and cutting conditions.
The heavy-duty machine structure features a rigid frame, precision ball screws, heavy-load linear guideways and hydraulic self-centering clamping to ensure accurate positioning, smooth operation and long service life. The enclosed protective cover helps protect key components and improves operator safety.
The CNQG-65 can also be integrated with a storage rack, automatic double-head pipe threading machine or pipe grooving machine to build a complete automatic fire sprinkler pipe prefabrication production line, helping manufacturers achieve standardized and efficient pipe processing.
By combining intelligent cutting optimization with automatic pipe length control, the CNQG-65 helps reduce material waste, lower labor costs and improve workshop productivity. It is widely used by fire sprinkler pipe manufacturers, MEP contractors and industrial pipe fabrication workshops requiring automated and reliable steel pipe cutting solutions.

Applications:
Fire Sprinkler Pipe Prefabrication

Automatically cuts steel pipes according to production cutting lists for fire sprinkler system fabrication.

MEP Pipe Fabrication

Processes steel pipes used in mechanical, electrical and plumbing projects with consistent cutting accuracy.

Industrial Steel Pipe Processing

Suitable for batch cutting of carbon steel pipes used in industrial piping systems.

Pipe Fabrication Workshops

An ideal solution for workshops requiring automatic length control, high production efficiency and standardized pipe processing.

Specifications:

Competitive Advantage:
Intelligent Cutting Optimization

Automatically calculates optimized cutting sequences from production cutting lists, improving material utilization and reducing pipe waste.

Fully Automatic Fixed-Length Cutting

Combines servo feeding, automatic length positioning, hydraulic clamping and saw cutting to minimize manual operation and improve production efficiency.

High-Speed Saw Cutting

Achieves a cutting cycle of approximately 3–5 seconds per cut, making it suitable for high-volume steel pipe fabrication.

Accurate Servo Positioning

The servo feeding system, precision ball screws and heavy-duty linear guideways ensure accurate cutting lengths and excellent repeatability.

Heavy-Duty Industrial Construction

Built with a rigid machine frame, hydraulic self-centering clamping and industrial-grade components for reliable long-term operation in demanding production environments.

Intelligent Control System

The Mitsubishi PLC and industrial computer automatically execute cutting programs based on production lists, simplifying operation and improving production management.

Expandable Automatic Production Line Solution

The CNQG-65 can be combined with storage racks, automatic threading machines and grooving machines to create a complete automated fire sprinkler pipe prefabrication production line.

Material Optimization & Lower Production Costs

By optimizing cutting sequences and reducing material waste, the machine helps manufacturers lower production costs while improving workshop efficiency.
