Automatic Angle Iron Punching & Cutting Machine | JTCQ-5 for Steel Angle Processing

Description:

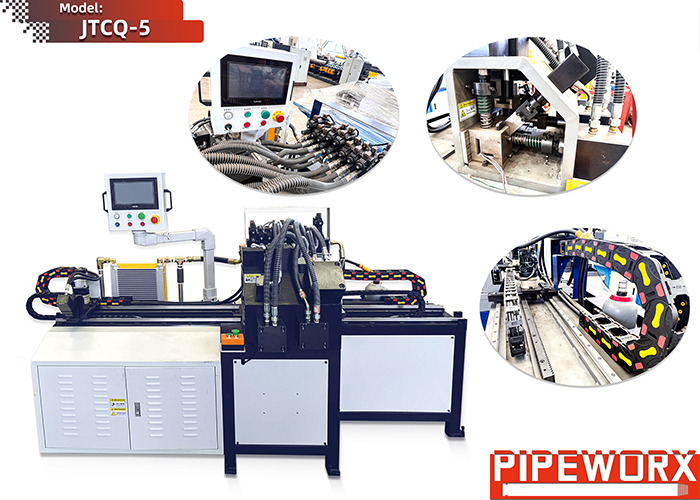

The JTCQ-5 Automatic Angle Iron Punching & Cutting Machine is an integrated steel angle processing solution combining automatic positioning, punching and fixed-length cutting in one compact machine.
Compared with traditional manual processing methods, the JTCQ-5 automatically positions the angle iron, performs punching and completes cutting according to preset parameters, helping improve production efficiency and processing consistency.
The machine is suitable for commonly used steel angle sizes of approximately 30–50 mm with material thicknesses of approximately 3–5 mm. With a maximum punching diameter of Ø16 mm, it meets common requirements for pipe support brackets, installation components and steel fabrication parts.
The touchscreen operation system combined with XINJE PLC control provides a simple and reliable operating experience. Operators can easily set hole spacing and cutting length according to different production requirements.
Designed for engineering fabrication workshops, the JTCQ-5 is widely used in pipe support manufacturing, fire protection projects, HVAC installation, construction and general steel processing applications.
By integrating punching and cutting functions into one machine, the JTCQ-5 helps reduce manual operations, simplify production processes and improve workshop productivity.

Applications:

Pipe Support Fabrication

Automatically processes angle iron used for pipe supports, brackets and installation components.

Fire Protection Projects

Suitable for manufacturing steel components used in fire sprinkler pipe support systems.

HVAC Engineering

Processes angle steel components for duct supports and HVAC installation structures.

Construction & Steel Fabrication

Suitable for workshops requiring efficient punching and cutting of steel angle materials.

Specifications:

Competitive Advantage:

Integrated Punching & Cutting Design

Combines automatic positioning, punching and cutting functions in one machine, reducing the need for separate processing equipment.

Automatic Hole Positioning

The machine automatically positions the angle iron according to preset hole spacing, improving processing consistency.

Touchscreen Control System

The user-friendly interface allows operators to quickly set processing parameters and simplify daily operation.

Efficient Batch Processing

Automatic positioning and fixed-length cutting help reduce repetitive manual work and improve production efficiency.

Ø16 mm Punching Capacity

Supports punching holes up to Ø16 mm for various connection and installation applications.

Reliable Industrial Structure

Designed with a compact and rigid structure for stable operation in engineering fabrication environments.
